iOS Mediation

iOS Google Ad Manager (GAM) Mediation Adapter supports all display.io Ad Units, except OutsteramVideo.

Google Ad Manager/ display.io ad units mapping:

	display.io	GAM
	Interscroller	Banner
	Interstitial	Interstitial
	Infeed	Banner
	Medium Rectangle	Banner
	Banner	Banner

To set it up:

1. Add the adapter to your project:

Download source and add required files from “DIOAdapterGoogleAds” to your project.

Follow guide to install and initialize DisplayIO SDK.

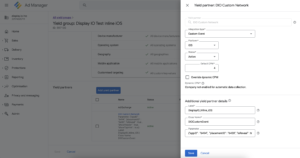

2. Create new Company in Admin – Companies section, choose “Other company” and turn on “Mediation” toggle.

3. Create a new Yield Group (Banner or Interstitial) and add Yield Partner (DisplayIO) to the Yield Group. Link created Yield Group to the ad unit you want to mediate. If you require more instruction on this please consult the link below: https://support.google.com/admanager/answer/7390828

4. Add Yield Partner to Yield Group and define a Custom  Event using settings:

Define Custom Class Name:

DIOCustomEvent

Define  JSON formatted string as Parameter where put your <APP_ID> and <PLACEMENT_ID>. Both can be found on display.io platform.

{"appID" : "6494", "placementID" : "6430"} //example

5. Create a new ad unit and specify the newly created network as a source. Disable auto-refreshing option.

6. Make sure that DisplayIO network has a higher priority than any other sources (usually Google adds its own source by default).

7. Use Banner or Interstitial tutorials to get ads from Google Ad Manager.

7.1.  Use Adaptive Banner tutorial to implement Interscroller ad unit.

//Interscroller require full width banner view
GADAdSize adSize = GADCurrentOrientationInlineAdaptiveBannerAdSizeWithWidth(self.view.frame.size.width);
self.bannerView = [[GAMBannerView alloc] initWithAdSize:adSize];

8. Interscroller ad unit support additional customisation. You can set ad unit behaviour using next parameters:

{"appID" : "6494", "placementID" : "6430", "isReveal" : false , "showHeader" : false, "showTapHint" : false} //example

Note: above parameters are optional and has true value by default.

9. Deep customisation is also possible for Interscroller as well as for others ad units. To customise ad unit on placement level retrieve Placement object after DIO SDK initialisation:

DIOPlacement *placement = [[DIOController sharedInstance] placementWithId:@"YOUR_PLACEMENT_ID"];

iOS AdMob Mediation Adapter supports all display.io Ad Units.

AdMob/ display.io ad units mapping:

	display.io	AdMob
	Interscroller	Banner
	Interstitial	Interstitial
	Infeed	Banner
	Medium Rectangle	Banner
	Banner	Banner

To set it up:

1. Add the Adapter to your project:

Download source and add required files from “Classes” to your project.

2. Create a Google AdMob account and register an app

3. Use Quick Start guide to setup AdMob SDK

4a. Interstitial: create a mediation group for Interstitial / iOS

• Add an ad unit;
• Cancel Real-time eCPM for Admob network;
• Add custom event: In “Class Name” enter DIOInterstitialAdapter and in “Parameter” enter the relevant Placement ID.

4b. Banner: create a mediation group for Banner / iOS

• Add an ad unit;
• Cancel Real-time eCPM for Admob network;
• Add custom event: In “Class Name” enter DIOBannerAdapter and in “Parameter” enter the relevant Placement ID.

4c. Medium Rectangle: create a mediation group for Banner / iOS

• Add an ad unit;
• Cancel Real-time eCPM for Admob network;
• Add custom event: In “Class Name” enter DIOMediumRectangleAdapter and in “Parameter” enter the relevant Placement ID.

4d. Infeed: create a mediation group for Infeed/ iOS

• Add an ad unit;
• Cancel Real-time eCPM for Admob network;
• Add custom event: In “Class Name” enter DIOInFeedAdapter and in “Parameter” enter the relevant Placement ID.

4e. Interscroller: create a mediation group for Interscroller/ iOS

• Add an ad unit;
• Cancel Real-time eCPM for Admob network;
• Add custom event: In “Class Name”enter DIOInterscrollerAdapter and in “Parameter” enter the relevant Placement ID.

5. Disable the automatic-refresh in AdMob ad unit settings (under advanced settings).

6. Initialize DIO SDK and start AdMob SDK:

[[DIOController sharedInstance] initializeWithProperties:nil appId:@"<YOUR APP ID>" completionHandler:^{
 // DIO initialized
 [[GADMobileAds sharedInstance] startWithCompletionHandler:^(GADInitializationStatus *_Nonnull status){
 // GAD started
 }];
} errorHandler:^(NSError *error) {
 // Failure
}];

6a. Get Interstitial ads from AdMob based on tutorial.

6b. Get Banner ads from AdMob based on tutorial.

6c. Get Medium Rectangle ads from AdMob based on tutorial

6d. Get Infeed ads from AdMob based on the following:

#import <GoogleMobileAds/GoogleMobileAds.h>
#import <DIOSDK/DIOController.h>
@interface TableViewController () <GADBannerViewDelegate>
@property(nonatomic, strong) GADBannerView *bannerView;
@end

@implementation TableViewController
- (void)viewDidLoad {
    [super viewDidLoad];
    self.navigationController.navigationBar.translucent = NO;

    [self.tableView registerClass:[UITableViewCell class] forCellReuseIdentifier:@"Cell1"];
    [self.tableView registerClass:[UITableViewCell class] forCellReuseIdentifier:@"Cell2"];

    self.bannerView = [[GADBannerView alloc] initWithAdSize:kGADAdSizeMediumRectangle];
    self.bannerView.delegate = self;
    self.bannerView.adUnitID = @"<YOUR_AD_UNIT_ID>";
    self.bannerView.rootViewController = self;

    dispatch_async(dispatch_get_main_queue(), ^{
        GADRequest *request = [GADRequest request];
        request.testDevices = @[kGADSimulatorID];
        [self.bannerView loadRequest:request];
    });
}

- (void)viewWillDisappear:(BOOL)animated {
    [super viewWillDisappear:animated];
    [[DIOController sharedInstance] finishAllAds];
}

- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section {
  return 30;
}

- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath {
    if (indexPath.row == 15) {
        UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:@"Cell1" forIndexPath:indexPath];
        cell.selectionStyle = UITableViewCellSelectionStyleNone;

        if (cell.contentView.subviews.count > 0) [cell.contentView.subviews[0] removeFromSuperview];
        [cell.contentView addSubview:self.bannerView];

        self.bannerView.translatesAutoresizingMaskIntoConstraints = NO;
        [cell.contentView.leadingAnchor constraintEqualToAnchor:self.bannerView.leadingAnchor].active = YES;
        [cell.contentView.trailingAnchor constraintEqualToAnchor:self.bannerView.trailingAnchor].active = YES;
        [cell.contentView.topAnchor constraintEqualToAnchor:self.bannerView.topAnchor].active = YES;
        [cell.contentView.bottomAnchor constraintEqualToAnchor:self.bannerView.bottomAnchor].active = YES;

        return cell;
    }

    UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:@"Cell2" forIndexPath:indexPath];
    cell.selectionStyle = UITableViewCellSelectionStyleNone;
    cell.textLabel.text = @"Simple Cell";

    return cell;
}

/*
 * For infeed, use the following:
 */

- (CGFloat)tableView:(UITableView *)tableView heightForRowAtIndexPath:(NSIndexPath *)indexPath {
    if (indexPath.row == 15) {
        CGFloat ratio = 300 / 250.0;

        if (CGRectGetHeight(self.tableView.frame) < CGRectGetWidth(self.tableView.frame)) {
            return CGRectGetHeight(self.tableView.frame) / ratio;
        } else {
            return CGRectGetWidth(self.tableView.frame) / ratio;
        }
    }

    return UITableViewAutomaticDimension;
}

@end

6e. Get Interscroller ads from AdMob based on the following:

UITablevView integration:

#import "InterscrollerViewController.h"
#import <GoogleMobileAds/GoogleMobileAds.h>
#import <DIOSDK/DIOController.h>
#import <DIOSDK/DIOInterscrollerView.h>
#import "DIOInterscrollerAdapter.h"

@interface InterscrollerViewController () <GADBannerViewDelegate>
@property(nonatomic, strong) GADBannerView *bannerView;
@end

@implementation InterscrollerViewController

DIOInterscrollerView *dioView;

- (void)viewDidLoad {
    [super viewDidLoad];
    self.navigationController.navigationBar.translucent = NO;
    [self.tableView registerClass:[UITableViewCell class] forCellReuseIdentifier:@"Cell1"];
    [self.tableView registerClass:[UITableViewCell class] forCellReuseIdentifier:@"Cell2"];

    self.bannerView = [[GADBannerView alloc] initWithAdSize:kGADAdSizeMediumRectangle];
    self.bannerView.delegate = self;
    self.bannerView.adUnitID = @"ca-app-pub-1186601170998955/8184589468";
    self.bannerView.rootViewController = self;

    dispatch_async(dispatch_get_main_queue(), ^{
        GADRequest *request = [GADRequest request];
        [self.bannerView loadRequest:request];
    });
}

- (void)viewWillDisappear:(BOOL)animated {
    [super viewWillDisappear:animated];
    [[DIOController sharedInstance] finishAllAds];
}

- (void)bannerViewDidReceiveAd:(nonnull GADBannerView *)bannerView{
    dioView = [DIOInterscrollerAdapter getInterscrollerViewForTableView:bannerView
                                            withInterscrollerSize:CGSizeMake(self.view.frame.size.width, self.view.frame.size.height)
                                            withBaseSize:kGADAdSizeMediumRectangle];
}

- (NSInteger)numberOfSectionsInTableView:(UITableView *)tableView {
    return 1;
}

- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section {
    return 39;
}

- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath {
    if (indexPath.row > 0 && indexPath.row % 20 == 0) {
        UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:@"Cell1" forIndexPath:indexPath];
        cell.selectionStyle = UITableViewCellSelectionStyleNone;
        [cell.contentView addSubview:self.bannerView];
        [cell.contentView.leadingAnchor constraintEqualToAnchor:self.bannerView.leadingAnchor].active = YES;
        [cell.contentView.trailingAnchor constraintEqualToAnchor:self.bannerView.trailingAnchor].active = YES;
        [cell.contentView.topAnchor constraintEqualToAnchor:self.bannerView.topAnchor].active = YES;
        [cell.contentView.bottomAnchor constraintEqualToAnchor:self.bannerView.bottomAnchor].active = YES;
        return cell;
    }

    UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:@"Cell2" forIndexPath:indexPath];
    cell.selectionStyle = UITableViewCellSelectionStyleNone;
    cell.textLabel.text = @"Simple Cell";
    return cell;
}

- (CGFloat)tableView:(UITableView *)tableView heightForRowAtIndexPath:(NSIndexPath *)indexPath {
    return UITableViewAutomaticDimension;
}

@end

UIScrollView integration:

@implementation InterscrollerScrollViewController

- (void)viewDidLoad {
    [super viewDidLoad];
    self.navigationController.navigationBar.translucent = NO;
    self.bannerView = [[GADBannerView alloc] initWithAdSize:kGADAdSizeMediumRectangle];
    self.bannerView.delegate = self;
    self.bannerView.adUnitID = @"ca-app-pub-1186601170998955/8184589468";
    self.bannerView.rootViewController = self;
    [self.adsView addSubview:self.bannerView];

    dispatch_async(dispatch_get_main_queue(), ^{
        GADRequest *request = [GADRequest request];
        [self.bannerView loadRequest:request];
    });
}

- (void) viewWillDisappear:(BOOL)animated {
    [super viewWillDisappear:animated];
    [[DIOController sharedInstance] finishAllAds];
}

- (void)bannerViewDidReceiveAd:(nonnull GADBannerView *)bannerView{
        self.dioView = [DIOInterscrollerAdapter getInterscrollerViewForScrollView:bannerView
                                               withInterscrollerSize:CGSizeMake(self.scrollView.frame.size.width, self.scrollView.frame.size.height)
                                                        withBaseSize:kGADAdSizeMediumRectangle];
}

- (void)close:(id)sender {
    [self dismissViewControllerAnimated:YES completion:nil];
}

@end

In order to stop Infeed or Interscroller ads, and release all the resources associated with it (for example when leaving the screen) call:

[[DIOController sharedInstance] finishAllAds];
